Clock

With the «Clock» app you show the current time and, if you like, the date on the screen, digital or analog.

Bring a clear time to the display, e.g. at the reception, in production or in the break room. You set the font, colors and format yourself.

This is what Clock looks like on the screen, examples from the field:

• An active revolutionSCREEN account with access to my.rstv.app.
• No external source needed.
• At least one configured screen.

In the sidebar on the left, click «Apps» and at the top «zum App-Store» (to the app store).

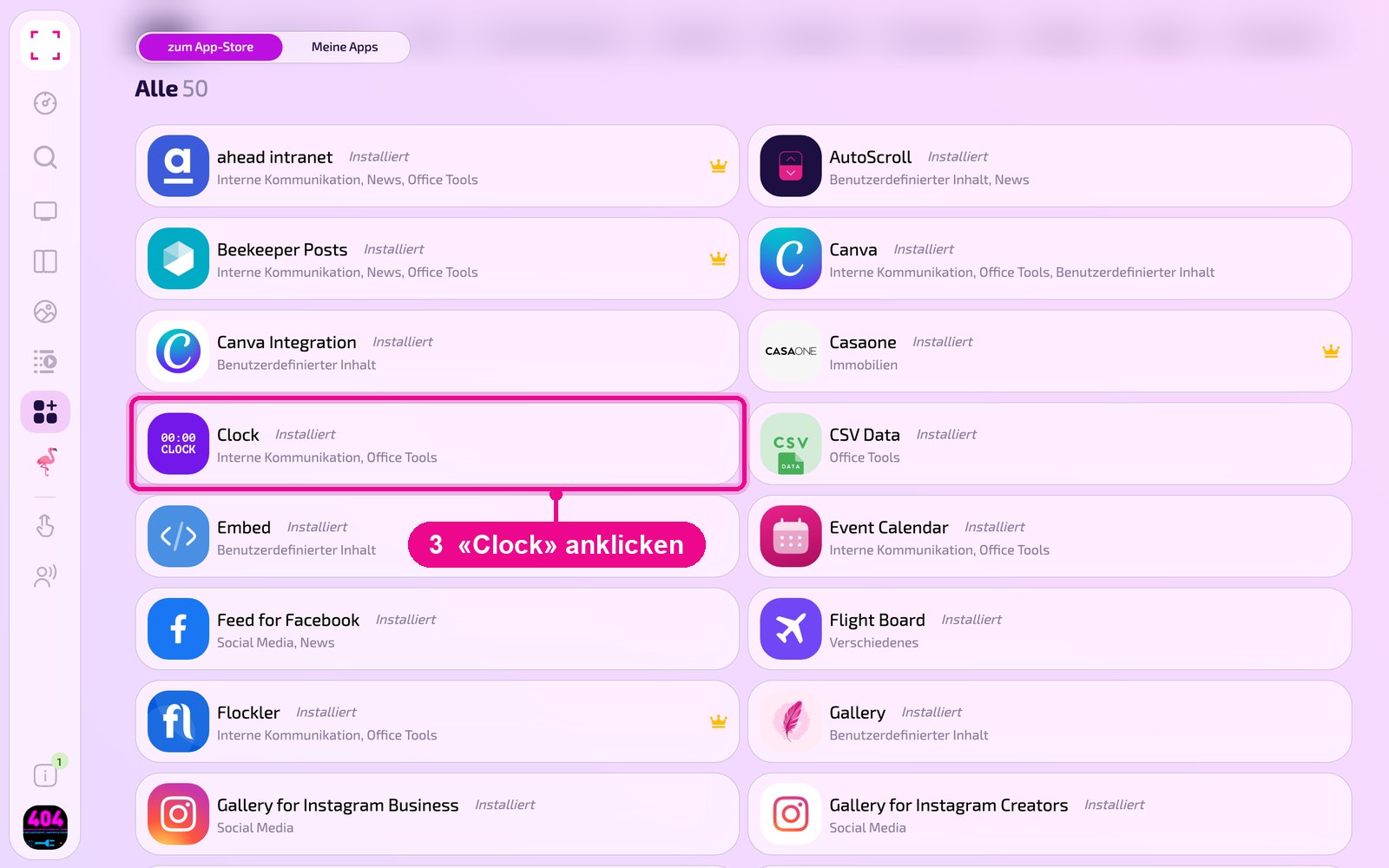

Scroll to the «Alle» (All) list and click the «Clock» tile. Use the category buttons to narrow down the list.

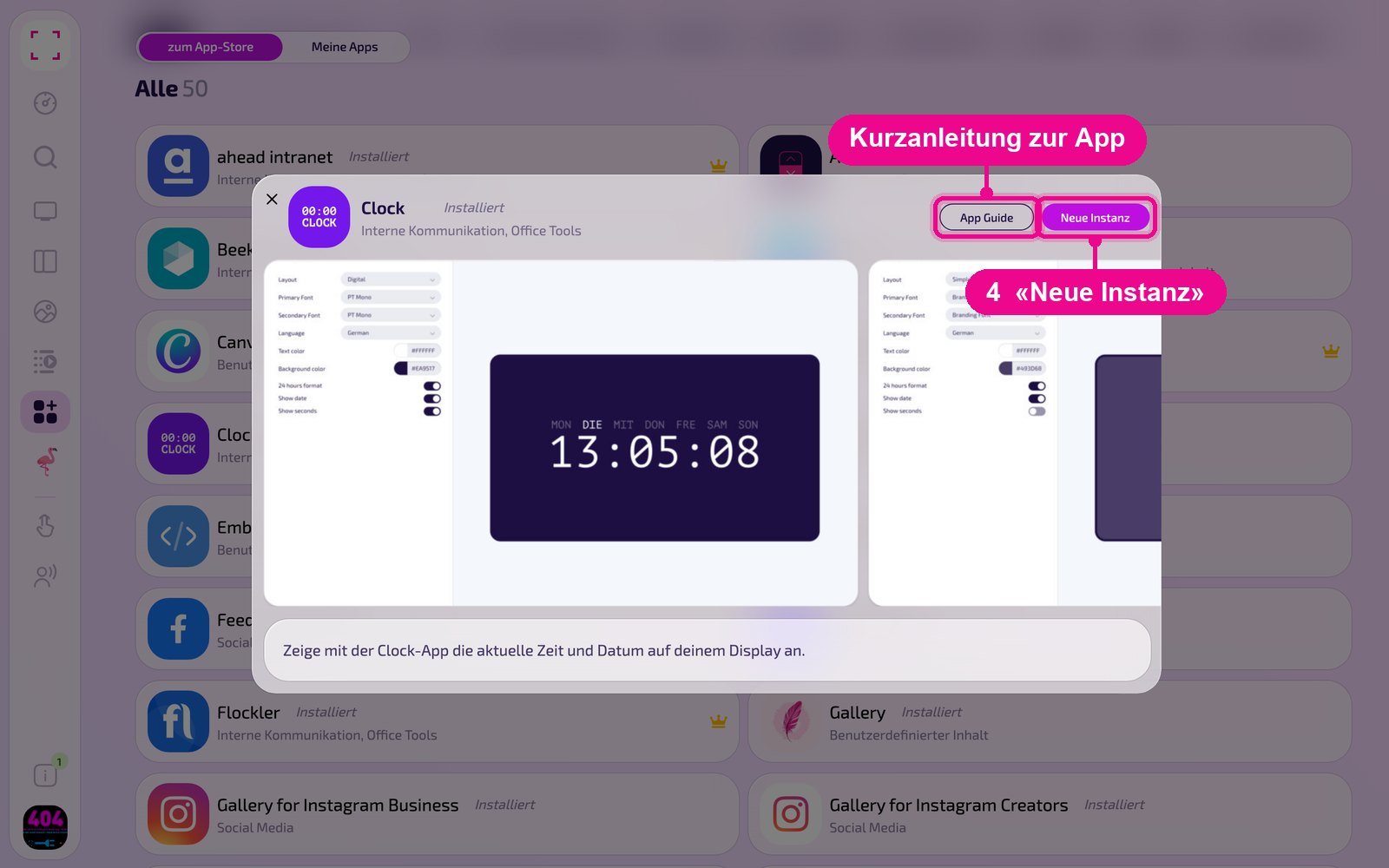

The app's detail view opens. If it is not yet installed, first click «Installiere» (Install). Then click «Neue Instanz» (New instance). «App Guide» opens a short guide.

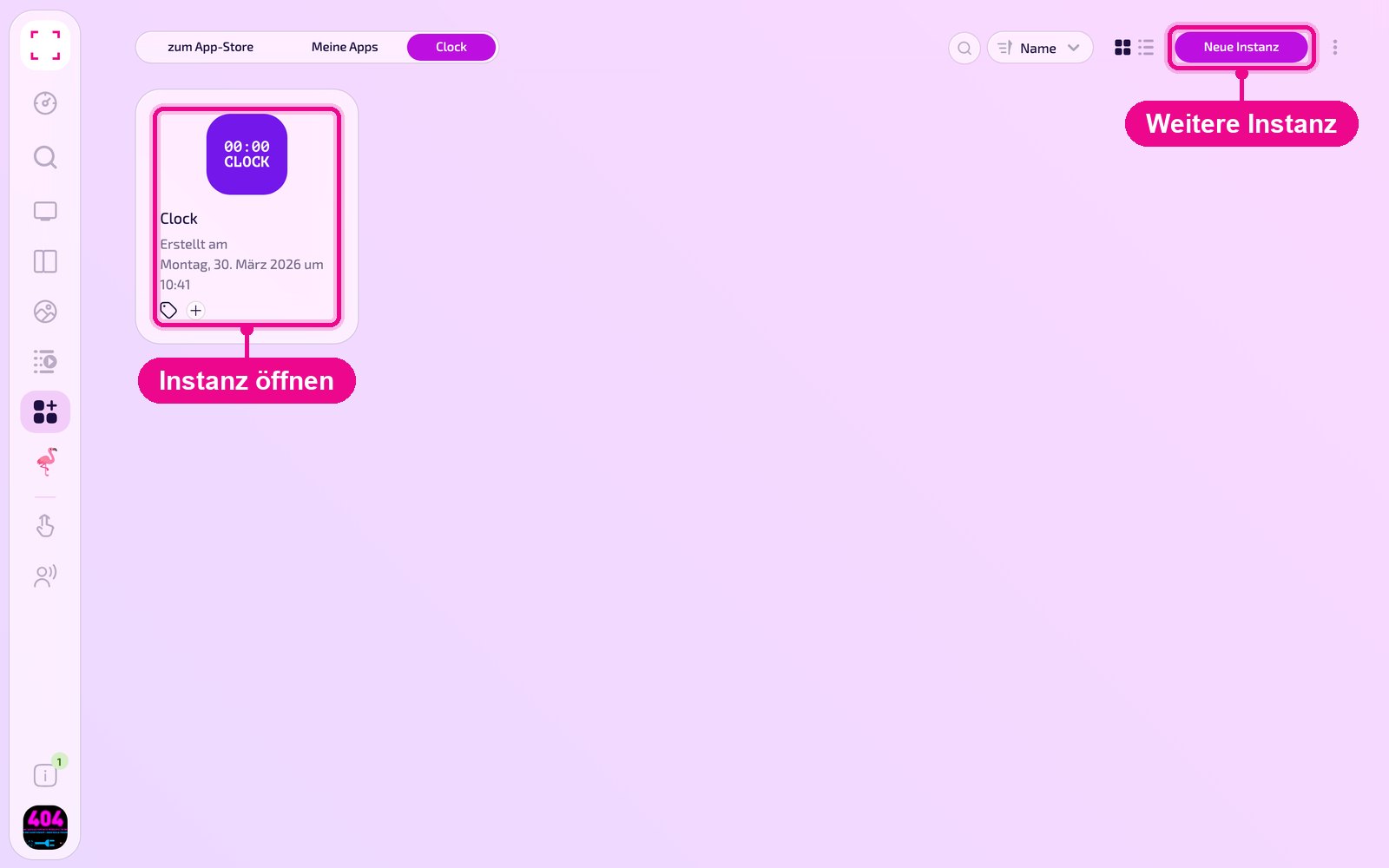

Under «Apps › Meine Apps» (My apps) you see all instances of the app as tiles. With «Neue Instanz» (New instance) at the top right you create another one, and with a click on a tile you open an existing one.

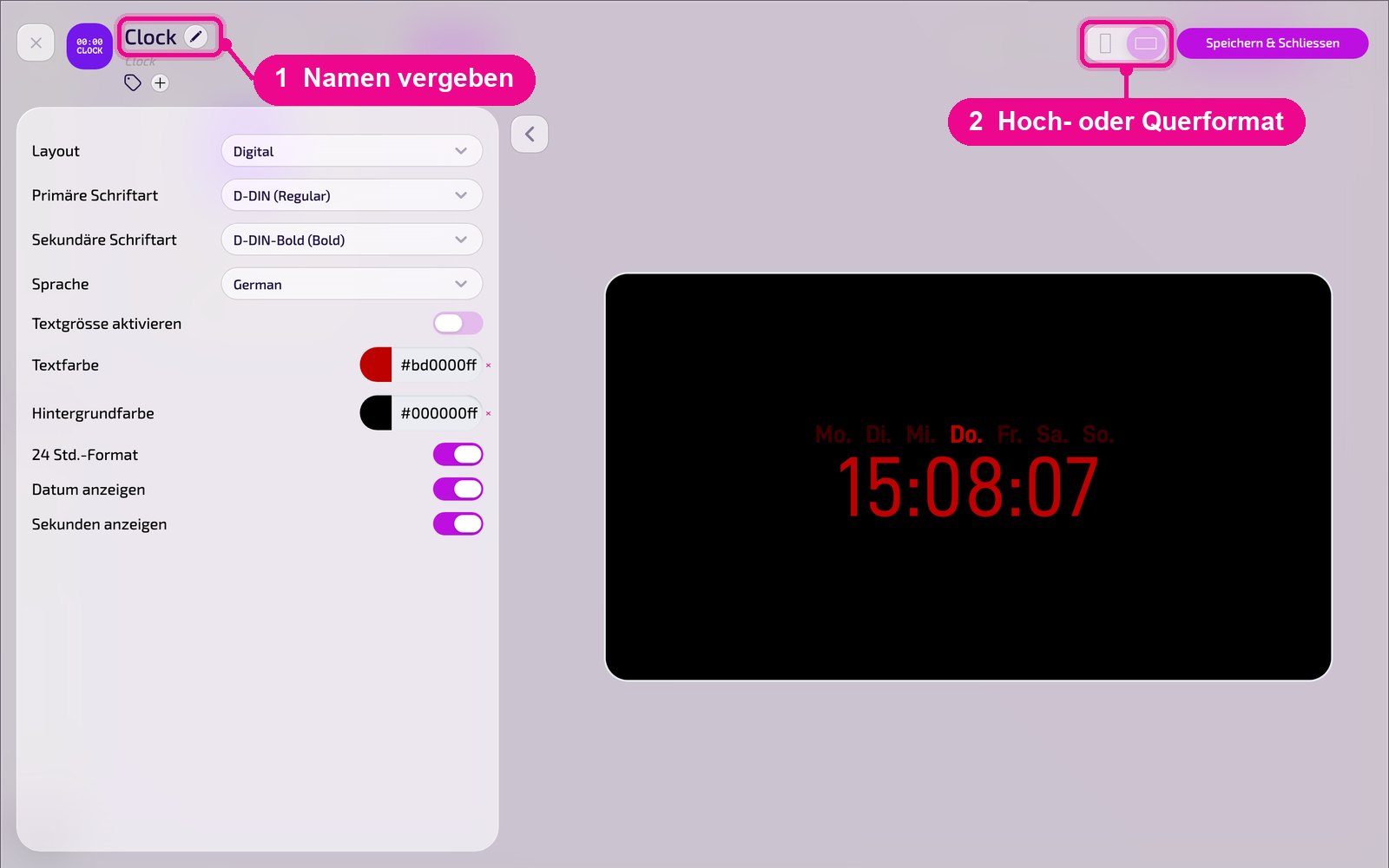

In the editor, hover over the title and click the pencil to give the instance a name. A new instance shows «Kein Name angegeben» (No name specified) in red until then. At the top right you choose whether the preview appears in portrait or landscape format.

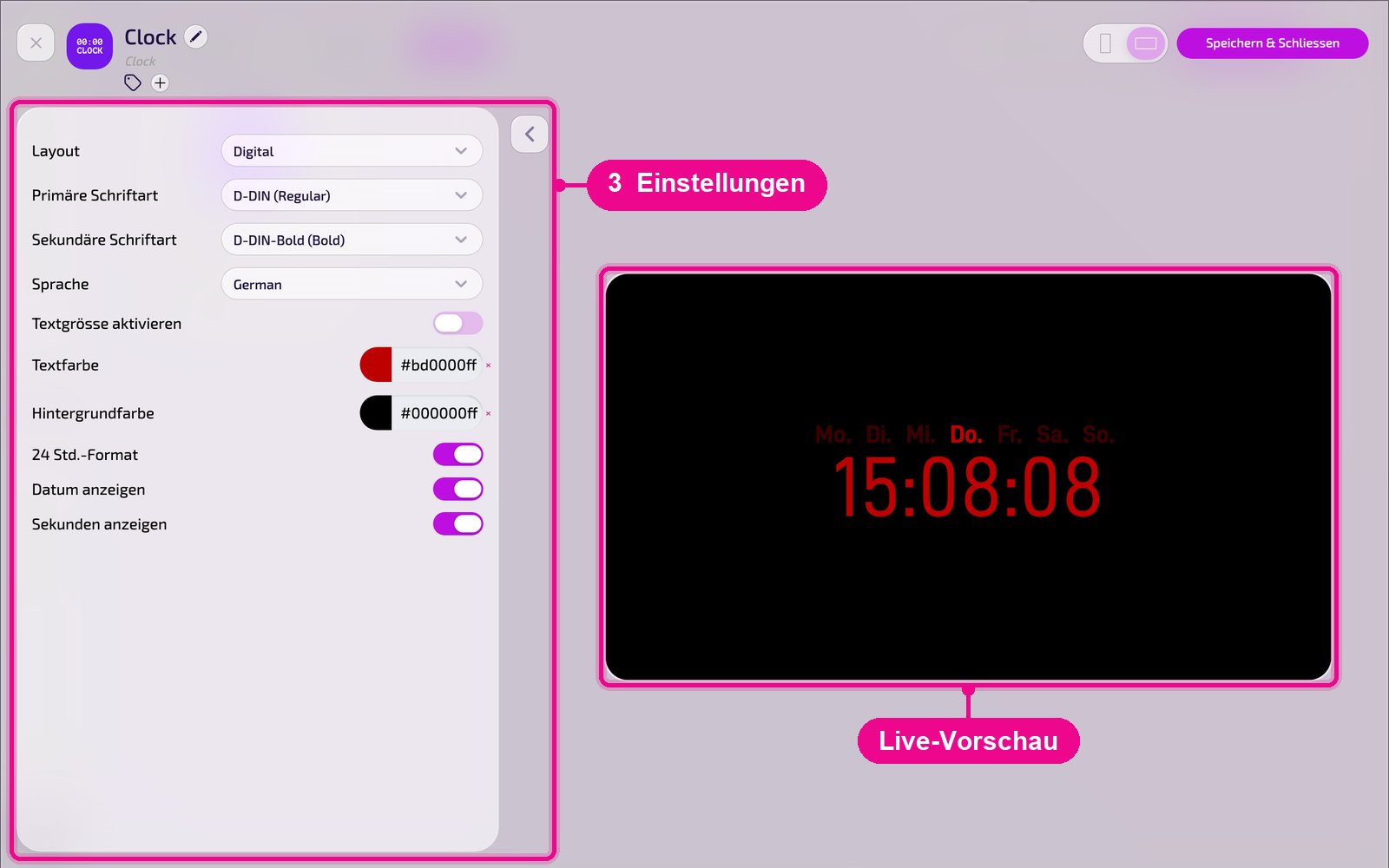

On the left are all settings, on the right you see immediately in the live preview how the instance looks on the screen. With the arrow next to the card you collapse the settings.

• Layout: Display of the clock, e.g. «Digital».
• Primary / Secondary font: Fonts for time and date.
• Language: Language of the weekdays, e.g. «German».
• Enable text size: Toggle to set the text size yourself.
• Text color / Background color: Colors for text and background. With × you reset a color.
• 24-hour format: shows the time in 24-hour instead of 12-hour format.
• Show date: shows or hides the line with weekday or date.
• Show seconds: shows or hides the seconds.

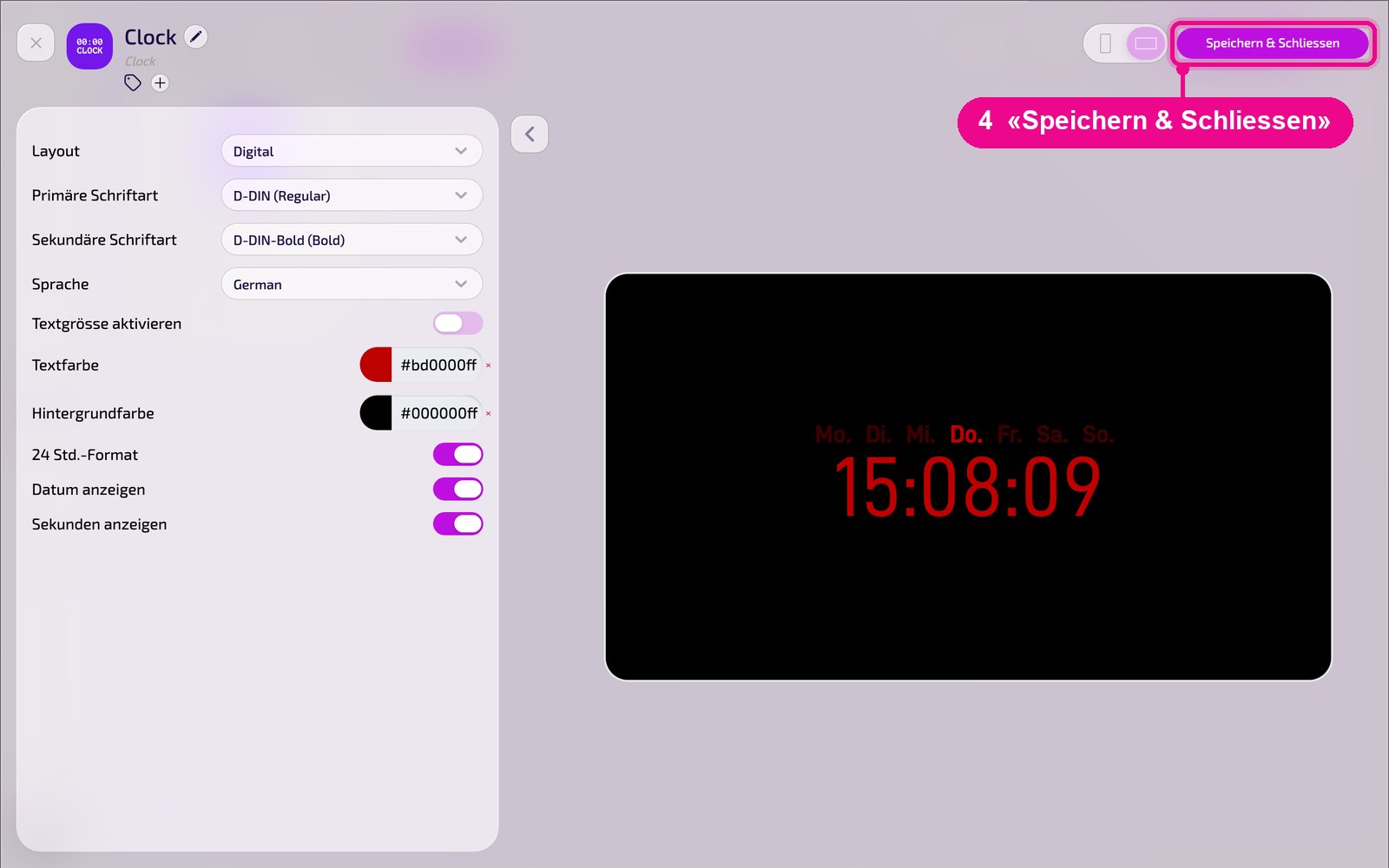

Save the instance at the top right with «Speichern & Schliessen» (Save & close).

Add to a Playlist: Open the Playlist, select the «Apps» tab on the right, click the app and then the instance. The instance is added immediately.

Add to a Layout: Open the Layout and click the pencil at the desired section.

In the «Inhalt für Abschnitt bearbeiten» (Edit content for section) window, add the instance with «Inhalt hinzufügen» (Add content). On the right of each element you set the schedule via «Täglich» (Daily).

Then, in the Playlist or Layout, click «Veröffentlichen» (Publish). As long as it says «Entwurf, Veröffentlichung erforderlich» (Draft, publishing required) there, the screen still shows the old state.
